6 inch 4 inch diesel water pump

FOB Price:

US 100-9999 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

50 Set/Sets per Year

Port:

Shanghai/Ningbo

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

L/C,T/T,Western Union,MoneyGram

Brand:

YONJOU diesel water pump

Products Model:

diesel water pump

Products Details
Company Profile

Quick Details

Brand Name: YONJOU diesel water pump

Model Number: diesel water pump

Place of Origin: Zhejiang, China (Mainland)

Packaging & Delivery

Packaging Details: packing:standard export plywood case per Agricultural Irrigation Diesel Water Pump, moveble Diesel water pump, diesel fuel pump demension:1200*300*260mm Weight:500kg~2000kg per each 6 inch & 4 inch diesel water pump
Delivery Detail: Shipped in 15 days after payment

Specifications

6 inch & 4 inch diesel water pump

Product Description

Series diesel engine introduction as below

Summarize:

1.The dewatering pump system consists of a self-priming centrifugal pump with semi-open impeller and a Simplex separator where air can separate from the liquid and be sucked by a vacuum pump.

2.The vacuum pump allows the unit to be primed automatically and capable of drawing significant quantities of air, allowing the priming of a wellpoint system and maintaining it under vacuum, or draining an excavation thoroughly under “snore” conditions.

Applications:

Construction	Industrial	Municipal	Agricultural
Mining	Dewatering	Industrial Waste	Sewage
Oil Field	Petrochemical	Paper Mills	Processing

Diesel Engine Specification:

Drive Variation	Cummins, Deutz, Ricardo, Perkins, Chinese Diesel or any others can be specified
Power Range	50HP~1066HP
Diesel Driving	Water cooled, air cooled
Cylinder	1, 2, 4 or 6
Cylinder Diameter	95, 96, 100, 102, 105, 110, 113 etc
Displacement	3.26~9.49L
Fuel Consumption	218, 224, 231, 251.6, 258.4 etc
Connection Type	Pin Coupling
Installation Way	Diretly coupling engine mounted, horizontal V-belt
Skid Mounted on Trailer	2 wheels or 4 wheels Trailer/Trailor

Product details:

1. YP Non-clogging Dewatering Pump consists of a self-priming centrifugal pump with semi-open impeller and a simplex separator where air can separate from the liquid and be sucked by a vacuum pump, the max suction head can reach to 9.5m

Pump Model	YP100	YP125	YP150	YP200	YP250	YP300
Standard Pump Body Material	Cast Iron
Standard Pump Impeller Material	Stainless Steel
Standard Pump Shaft Material	2Cr13
Bearing Type	Ball
Maximum Lift in theory (m)	9.5
Nominal Speed (rpm)	1800
Inlet & Outlet Size (mm)	100	125	150	200	250	300
Max. Dia Solids Handling Capability (mm)	20	26	76	76	50	65
Max. Discharge Head (m)	32	34	42	53	60	55
Max. Flow Rate (m3/h)	150	200	360	540	1000	1800

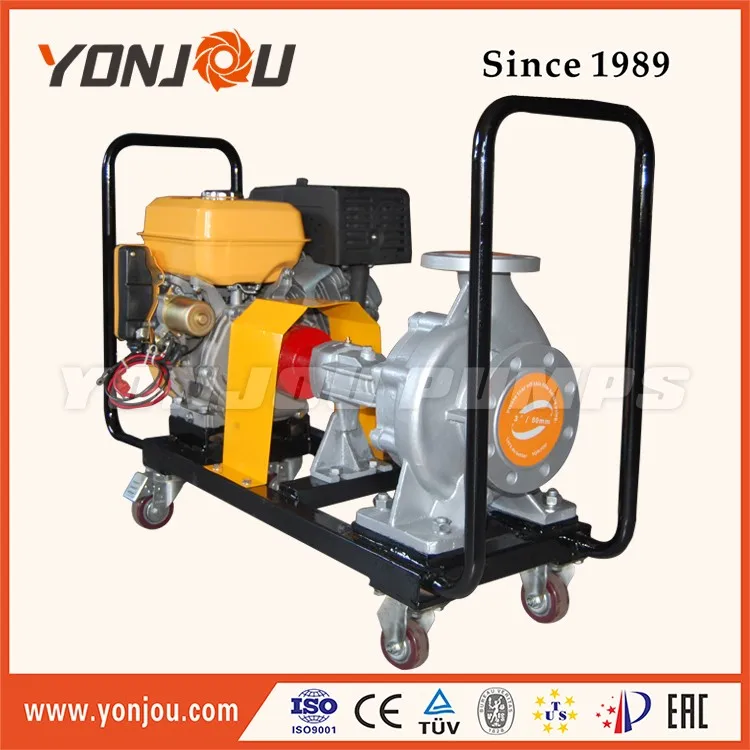

2. IS Single Stage End Suction Water Pump is for clean water or liquid similar to clean water, with high temperature mechanical seal it can be used to transfer hot water (150 degree celcius). It is used for industrial and city clean water supply and drainage, irrigation, fire protection, water supply, metallurgy, chemical, paper making, etc.

Working Principle	Standard centrifugal, end suction
Casing Material	HT200, SS304, SS316
Impeller Material	HT200, SS304, SS316, Copper
Pump Sealing	Packing seal, Mechanical seal
Capacity Range	6.3-400m3/h (27.7-1760US.GPM)
Head Range	125m (410ft)
Maximum Diameter	200mm (8inch)

3. S/XS High Flow Split Case Water Pump with high capacity and pressure, which can transfer clean water or similar liquids (Oil).

Working Principle	Centrifugal, Split Case Pump
Casing Material	HT200, SS304, SS316
Impeller Material	SS304, SS316, Copper, HT200
Pump Sealing	Packing seal, Mechanical seal
Capacity Range	126m3/h~8520m3/h
Head Range	8m~140m
Inlet/Outlet Diameter Range	6"(150mm)~32"(800mm)

4. D High Pressure Multistage Water Pump is used system of high-pressure run hot and cold water circulation and booster pumps in parallel water supply of the high rise building, fire, boiler feed water and cooling water systems and a variety of irrigation fluid conveying.

Working Principle	Centrifugal, Multi-stage
Casing Material	HT200, SS304, SS316
Impeller Material	HT200, SS304, SS316, Copper
Sealing Type	Packing seal, Mechancial seal
Flow Range	3.75-540m3/h (16.5-2376US.GPM)
Maximum Head	1056m (3463.7ft)
Maximum Caliber	250mm (10inch)

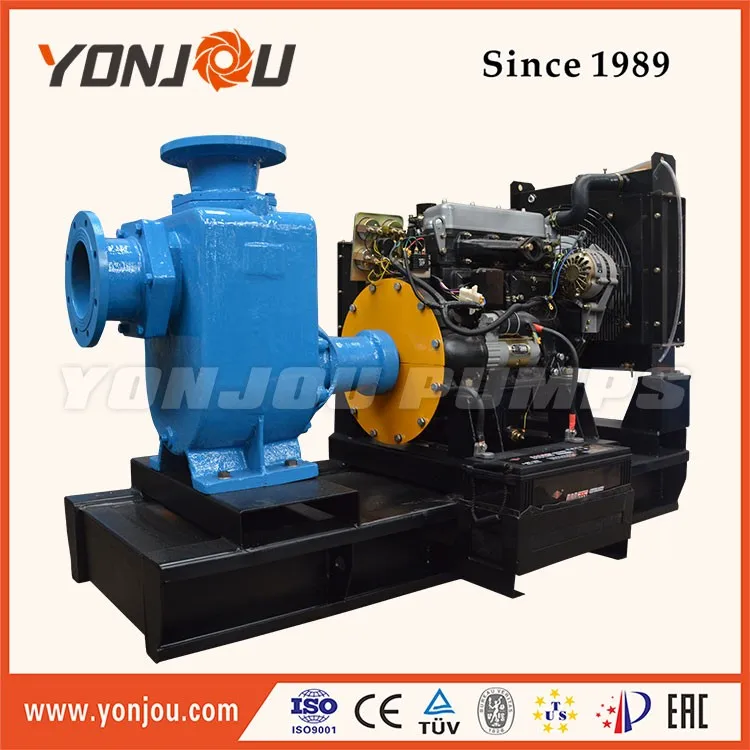

5. ZX/ZW/SP Self Priming Water Pump is our latest generation product base on US technology and craftwork. It is designed for economical & trouble-free operation in handling solid-laden liquids and slurries.

Working Principle	Centrifugal, Self-priming
Material	Cast iron, ductile iron, stainless steel, cast steel
Max. Suction Head	7.6m
Sealing Type	Packing seal, Mechancial seal
Solid Passing	20.63mm-76.2mm (20GPM~5500GPM)
Flow Range	8m3/h~1275m3/h
Head Range	6m~63m
Impeller Diameter	158.74mm~457.2mm

7. LQRY Hot Oil Pump is suitable for heat-conduction oil, or other hot oils with temperature ≤370°C

Working Principle	Centrifugal, Hot Oil, Thermal Oil, High Temperature Oil
Max. Permissible Fluid Temperature	370°C (698°F)
Casing Material	Cast steel
Shaft Sealing Type	Shaft seal ring, Mechanical seal, Carbon seal
Flow Range	4.5-400m³/h (19.8-1760US.GPM)
Head Range	85m (278.8ft)

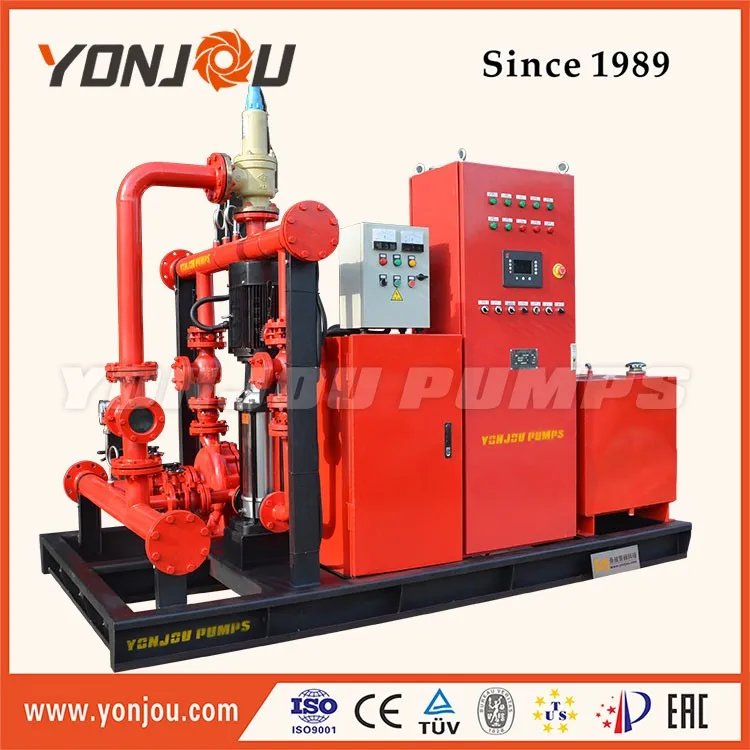

8. XBC Diesel Fire Water Pump comprise a combination of electric motor pump, diesel engine pump and jockey pump that used for fire fighting systems. Fire pumps are required to comply with Local Civil Defense Authority regulations and International Codes of Practice e.g. National Fire Protection Association (NFPA).

1.Electric pump: kinds of end suction pump, split case pump, multistage pump.

made of cast iron, stainless steel. Impeller can be bronze.

5.5-710 kw 0.3-1.2 mpa 10-420 l/s (150-6600GPM)

2.Diesel pump: Flow is the same with electric pump. It connects the pump set with

High elastic coupling or universal joint. It also includes water tank,

oil tank, fans, control screen etc.

7.0-810 kw 0.3-1.2 mpa 10-420 l/s (150-6600GPM)

3.Jockey pump: Horizontal or vertical, small flow,

head is higher than electric or diesel pump

4.Control panel: Control the pumps automatically with overload, overcurrent protection

5.Accessories: Check valve, gate valve, pressure tank (0.6mpa, 1.0mpa, 1.6mpa)

pressure gauge, pressure sensors, import and export common pipe, soft joints, flanges and common base.

Zhejiang yonjou Technology Co., Ltd. is a research and development, production, sales in the valve products supporting the production of complete sets of equipment, sales, investment and financial institutions modernized enterprise diversification.
Permanent ball brand was founded in 1989, is a region of southern Zhejiang earliest established brand valve, Wenzhou well-known trademark, famous trademark of Yongjia county. 2008 new start new orange smile trademark, pursuing new vitality to smile, to service for the foundation, and strive to be the permanent ball into the valve industry in national brand globalization.
Adhering to the "bigger and stronger" spirit, the company has passed the ISO9001 international quality system, the detection of the EU CE certification, SGS, BV, TUV certification, UTS product field, and has a number of national patents, products by PICC underwriting quality, the company continuously over the years has been rated as "ICBC AAA credit enterprise", Zhejiang province "Shou contract re credit units", "Zhejiang Province integrity of private enterprises", "science and technology enterprises in Zhejiang province", "Zhejiang Province valve industry quality brand", "Wenzhou famous trademark", "Yongjia county famous trademark", "Yongjia star enterprise", "Yongjia science and technology project implementation unit" etc.. Products are exported to Germany, American permanent ball, Britain, Russia, South Korea, Japan, Australia, Brazil, Indonesia, Singapore, Romania, the United Arab Emirates, Iran, Egypt and other 180 countries and regions. To provide products and services for CNPC, SINOPEC, ABB, SIEMENS, ARITA, GRUNDFOS, KSB, HANIL, JC, KENT, WVODESIGNS, MAIN, ITT and other Multi-National Corporation, and many times the ball directly to the permanent brand to enter the bidding project and the government procurement list.
