Induction brazing welding machine

FOB Price:

US 1080-3500 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

500 Set/Sets per Year

Port:

Shanghai, Qingdao,Tianjin, Guangzhou or as you request

Place of Origin:

Henan, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal,cash

Brand:

Yongda

Products Model:

WZP-36

Products Details
Company Profile

Quick Details

Brand Name: Yongda

Model Number: WZP-36

Place of Origin: Henan, China (Mainland)

Packaging & Delivery

Packaging Details: 1.Two wooden cases for packing brazing welding machine 2.G.W 130kgs 3. Transport by air/sea/express/train
Delivery Detail: 3 days if have stocks. 5 days if tailor-made

Specifications

Induction brazing welding machine

Product Description

Applications of induction brazing welding machine

Model WZP-36 and WZP-60/120 can be used for brazing :

(1) tools, cutlery categories:
Pliers, tools, reamers, metal, saw, cutter, air drill, coal drill,
(2) other categories:
Relay contacts, tubing, thermostat, welding instrument bulb contacts, disc, transformer copper, eyes welded copper sanitary ware, radiators, stainless steel pot handles, stainless steel pot pot cover air conditioning compressor welding

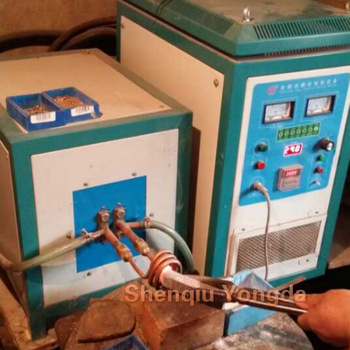

WZP-36 brazing welding machine photo

Technical parameters of WZP-36 brazing machine of induction heater

Model	Work power	Output power	Oscillation frequency	Output current	Cooling water pressure	Size	Weight
WZP-36	three phase 380V+/-10% 50-60HZ	3-20KW	10-50KHZ	3-40A	0.1MPA	generator 410×290 × 500mm transformer 310×260×380mm	40kgs; 45kgs

Model

Work power

Output power

Oscillation frequency

Output current

Cooling water pressure

Size

Weight

WZP-36

three phase 380V+/-10% 50-60HZ

3-20KW

10-50KHZ

3-40A

0.1MPA

generator

410×290 × 500mm

transformer 310×260×380mm

40kgs;
45kgs

Features of Yongda brand brazing machine of induction heater

Features of induction brazing welding machine

1. Timer setting, 0.1-0.99s

2. Almost no oxide layer .

3. Heating faster, reach up to 900-1000 degree within several seconds, max. temperature 1600 degree

4. High frequency 30-80KHZ is specially suitable for welding thin tube .or 10-50KHZ

5. Unique water circulating system ,make machine work 24 hours continuously.

6. Accessories: induction coils, foot pedal, water shunt valve, water hose, user manual

CE and ISO Certification

Packaging & Shipping

Packing for brazing welding machine

Wooden cases (plywood) or carton. As your required.

Inside,will be filled with plastic foam,for waterproof and shockproof.

Accessories: induction coils,foot switch and installing and operating instructions

Shipping: by sea LCL(less than container load) or by air.

Our Services

1. Reply your inquiry within 24 hours
2. Recommend suitable machine model,according to your work piece specifications and heating requirements.
3. Send detailed product parameters, photos and price.
4. Solve all the problem , such as shipping cost, shipping time,delivery time, warranty etc,what you concerned.
5. Reach an agreements, sign proforma invoice or contract.
6. Produce induction heating equipment strictly based on the PI/contract.
7. Arrange goods shipment
8.Tracking goods and help you install and operating machines.
9. Email or Call visit.
10.Provide long-terms technical support.

Contact Information

If you are interest in induction brazing welding machine,

please feel free to contact Jessie:

Yongda brand induction brazing welding machine, your brazing welding expert !

Shenqiu Yongda High Frequency Equipment Co., Ltd. was founded in 1996,which belongs to Henan high-tech enterprise ,was located in No.65, Liufu Village Liufu town, Shenqiu County, Henan ,China .
We have international trade department in Zhengzhou city. East to international airport (CGO), besides, high way, high speed rail, transport is very convenient.

We professionally dedicated to R & D, produce and sale high frequency, super audio frequency, medium frequency induction heating equipment: WGH ,WZP and KGPS series, CNC quenching machine tool and automatic feeder machine etc. We adhering to the spirit of innovation, mean while strengthening cooperation with domestic well-known universities and research institutions.

Our machine is mainly used for heating metal, induction forging, hardening, brazing, annealing, melting , shrink fit, etc. other fields.

Yongda High frequency Equipment Co.,Ltd is the leader of induction heating field and biggest full solid state induction heating equipment manufacturer in China. Our products has got CE and ISO certification and hot sale at home and abroad. Up to now, we already exported to Europe, America, and Southeast Asia etc. other regions.

Welcome everyone to visit us and negotiation business !
