YHCB large capacity gear oil pump portable oil pump lubricating oil pump YHCB large capacity gear oil pump portable oil pump lubricating oil pump YHCB large capacity gear oil pump portable oil pump lubricating oil pump

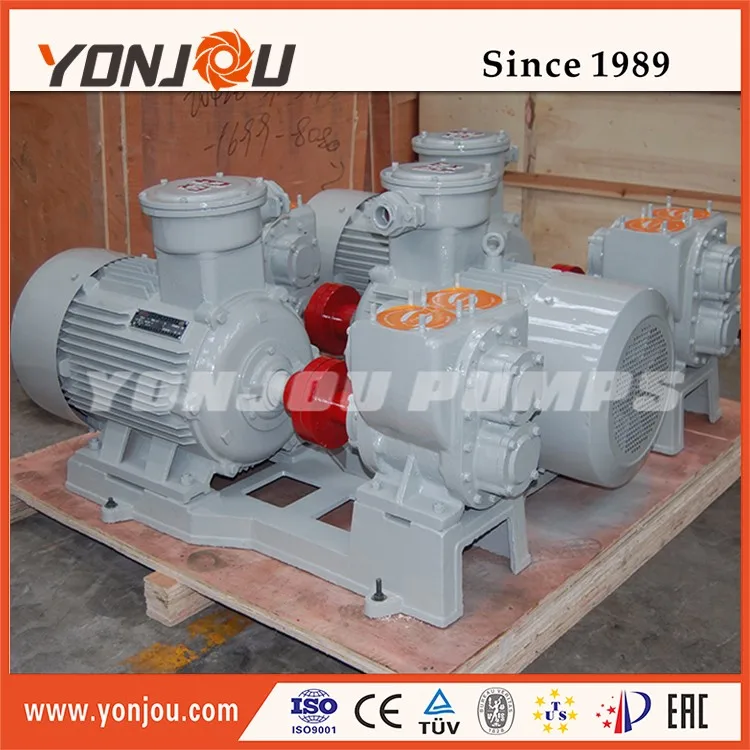

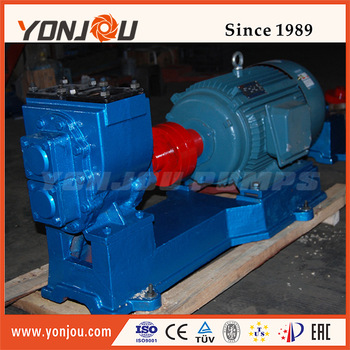

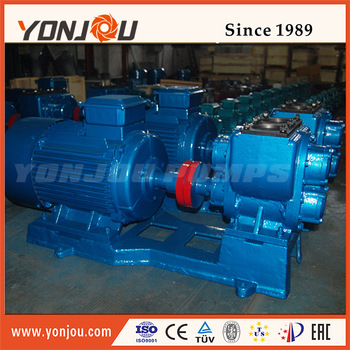

YHCB large capacity gear oil pump portable oil pump lubricating oil pump

FOB Price:
Min.Order Quantity:
1 Set/Sets
Supply Ability:
200 Set/Sets per Month
Port:
NINGBO
Place of Origin:
Zhejiang, China (Mainland)
Payment Terms:
L/C,T/T,Western Union,MoneyGram
Brand:
YONJOU
Products Model:
SP
Share:
  • Products Details
  • Company Profile

Quick Details

  • Brand Name: YONJOU

    Model Number: SP

    Place of Origin: Zhejiang, China (Mainland)

Packaging & Delivery

  • Packaging Details: Standard plywood case for YHCB large capacity gear oil pump portable oil pump lubricating oil pump.
  • Delivery Detail: Shipped in 15 days after payment

Specifications

YHCB  large capacity gear oil pump portable oil pump

lubricating oil pump

Product Description



Introduction:

1. YHCB  large capacity gear oil pump portable oil pump lubricating oil pump is made up of double circular tooth gears.

2. The lubricating oil pump is with merits of large flowrate, high head of delivery, low noise, low input speed, strong self-priming ability, easier installation and maintenance.

3. The gear pump is suit to transfer the liquid that is non-corrosive and without solid particle, such as oil, diesel, etc.

4. It's  an ideal selection for tank car modification industry and the oil sector.



Product details:





Working Principle: Double Gears
Main applications:        Oil
Driver: Electric motor, diesel engine.
Power Specs: 220/380/415V 3phase;  50hz/60hz
Max. permissible fluid temperature: 80°C(176°F)
Type of connection: Flange, Thread
Installation position: Horizontal
Casing/Inner parts material: Cast iron, Stainless Steel
Shaft seal type:    Shaft seal ring; Mechanical seal
Free passage: 00 mm
Maximum viscosity: 1.5X103C.S.T
Maximum drive rating:  45KW(60HP)
Maximum caliber:   200mm(8inch)
Maximum discharge-side pressure: 0.6MPa(6bar)
Flow rate range:   15-200 m3/h  (66-880US.GPM)





Performance data:





Model Capacity Pressure Speed Efficiency Suction Motor
(m3/h) (MPa) (r/min) (%) (m) Power Model
          (KW)
50YHCB-15 15 0.6 960 70 5 3 YB132S-6
50YHCB-20 20 0.2 1100 70 5 3 YB132S-6
65YHCB-30B 30 0.4 970 70 5 5.5 YB132M2-6
65YHCB-35 35 0.6 1440 70 5 7.5 YB132M-4
65YHCB-35A 35 0.6 960 70 5 7.5 YB160M-6
76YHCB-40 40 0.6 1440 70 5 7.5 YB132M-4
76YHCB-40A 40 0.6 970 70 5 7.5 YB160M-6
76YHCB-40B 40 0.4 970 70 5 7.5 YB160M-6
76YHCB-50 50 0.6 970 70 5 11 YB160L-6
80YHCB-60 60 0.6 970 70 5 11 YB160L-6
80YHCB-60A 60 0.6 970 70 5 11 YB160L-6
80YHCB-60B 60 0.4 970 70 5 11 YB160L-6
80YHCB-80 80 0.6 970 70 5 15 YB180L-6
100YHCB-100 100 0.4 970 70 5 18.5 YB200L1-6
150YHCB-150 150 0.4 980 70 5 30 YB225M-6
200YHCB-200 200 0.4 740 70 5 45 YB280M-6

Note:more detailes YHCB gear pump



Packaging & Shipping



Company Information

Zhejiang Yonjou Technology Co., Ltd is one of the leading manufacturers and exporters in the field of industry pumps with manufacturing facilities in mainland China. We are specialized in oil pump, diaphragm pump, diesel engine pump, centrifugal pump, screw pump, chemical pump etc.
