Brand Name: YONJOU
Model Number: ZW
Place of Origin: Zhejiang, China (Mainland)

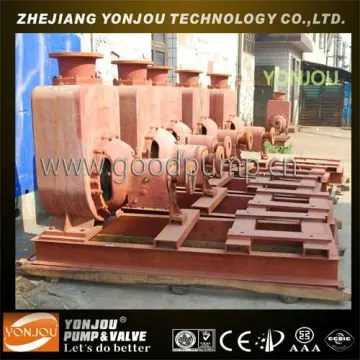

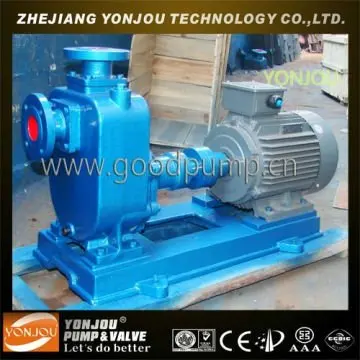

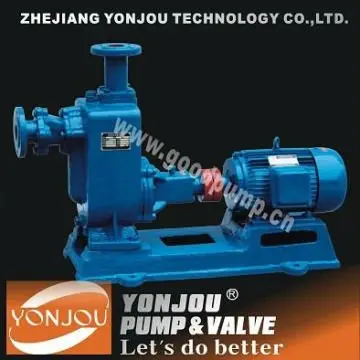

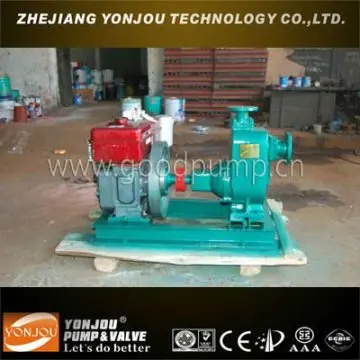

ZW sewage pump
Overview and purpose:
ZW self-priming non-clogging self-priming sewage pump sets and non-clogging sewage in one, not only like a general clean water self-priming pump, without pressing the bottom valve, not need primer irrigation, can pump contains large particles of solid blocks long fiber dirt, precipitation mineral impurities, excreta disposal, and all works of sewage material waste, to completely reduce labor intensity, and the use of mobile, easy installation, minimal maintenance, stable performance.
Main purpose:
1. ambient temperature ≤ 45 ° C, medium temperature ≤ 60 ° C.
2.medium PH value cast iron pump 6 to 9, a stainless steel pump is 1 to 14. Particle diameter for 60% of the pump caliber, fiber length for the total impurities five times the diameter
3..medium weight does not exceed 15% of the total media weight, medium weight over 1240 kg / cubic meter.
Product Features:
1, sewage ability: The special impeller attempts to prevent the design to ensure that pump efficiently and without clogging.
2.Energy efficient: the hydraulic model, efficiency is 3 to 5% higher than the average self-priming pump.
3, self-priming performance: self-priming height of one meter higher than the average self-priming pump, and self-absorption to a shorter time.
Technical parameters:
Flow range: 5m ³ / h to 800m ³ / h
Head range: 15m ~ 80m
Motor power: 2.2kw ~ 55kw
Model significance:
Example: ZW25 -8 -15
25 ------- imports diameter
ZW ----------- self-priming non-clog sewage pump
8 ----------- the rated flow
15--------- rated head
