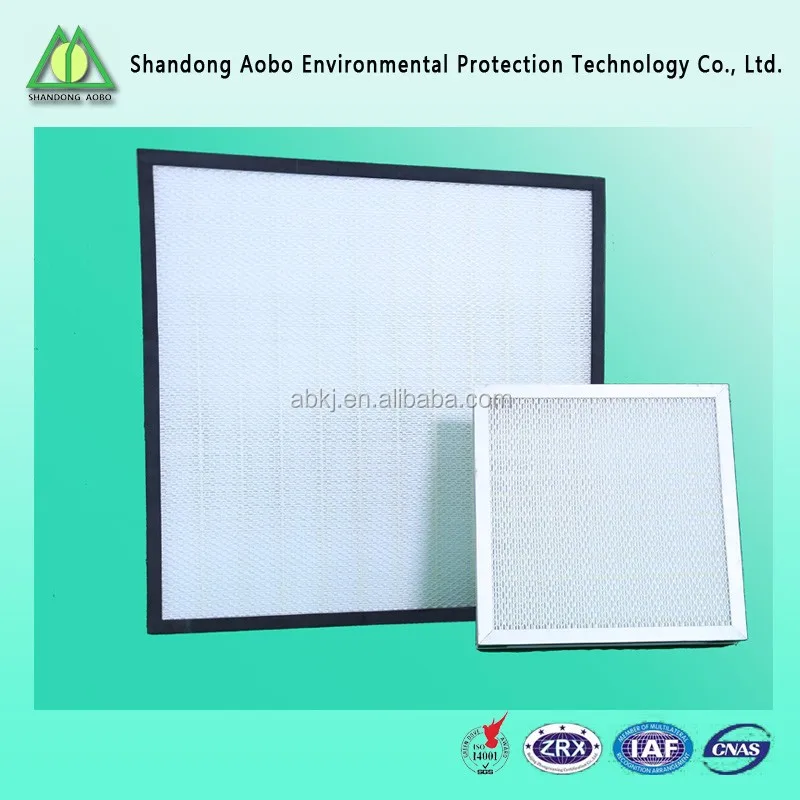

High efficiency conbined HEPA filter used in clean room/Ventilation and air conditioning filters

FOB Price:

US 8-20 / Piece

Min.Order Quantity:

50 Piece/Pieces

Supply Ability:

100000 Unit/Units per Week

Port:

Qingdao

Place of Origin:

Shandong, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union

Brand:

AOBO

Products Model:

HEPA filter

Products Details
Company Profile

Quick Details

Brand Name: AOBO

Model Number: HEPA filter

Place of Origin: Shandong, China (Mainland)
Condition: New
Efficiency: 99.99%
Construction: Box Filter
Filtration Grade: Hepa Filter
Medium Material: Fiberglass filter paper or PP
Porosity: 0.3u
Dimension(L*W*H): Standard Size, 592*592*295mm/296*592*295
Weight: 2kg, Negotiable
Certification: ISO9001, EN779/ISO9001
Warranty: 1 Year
After-sales Service Provided: Engineers available to service machinery overseas
Final resistance: (suggested) ≤600PA
Temp. resistance: ≤70℃
Humidity: ≤100%RH
Initial pressure (Pa): ≤220
Final pressure(Pa): ≤600
Partition materia: Hot melt rubber
Sealant: Polyurethane rubber

Packaging & Delivery

Packaging Details: PE bag and Cardboard
Delivery Detail: Shipped in 7 days after payment

Specifications

Product Description

Model	Outside Dimensions(mm)	Rated air flow(m3/h)	Initial resistance(Pa)	Efficiency(class)	Dust capacity(g)
	610×610×50	700	<=220 or<=140（HV）	≥99.99	450
	915×610×50	1000	<=220 or<=140（HV）		680
	1220×610×50	1400	<=220 or<=140（HV）		900
	610×610×69	1000	<=220 or<=140（HV）		560
	610×610×69	1500	<=220 or<=140（HV）		840
	1220×610×69	2000	<=220 or<=140（HV）		1120
	610×610×80	1200	<=220 or<=140（HV）		650

Specification
Type: High performance compact panel filter
Media: Wet-laid glass fiber paper
Frame: Aluminum/Stainless steel/Cardboard/ABS
Separator: Hot-melt glue
Protective screening: High strength metal retainer with painting processed
Recommended final pressure drop: 350Pa
Temperature: 90ºC maximum in continuous service

Application
For limited space of air supply system

Advantages
95 pleats/feet,20% higher than normal product, bring lower resistance and longer life
Ultra-fine glass fiber paper, good stability of filtration efficiency
Perfect structure of "V" shape, effectively reduce the system resistance
Light, compact structure
Double side retainers

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
