High Efficiency AC Evaporator Coil for Refrigeration Parts

High Efficiency AC Evaporator Coil for Refrigeration Parts

FOB Price:
US 80-1,369 / Set
Min.Order Quantity:
1 Set/Sets
Supply Ability:
10000 Set/Sets per Month
Port:
Qingdao Port, China
Place of Origin:
Shandong, China (Mainland)
Payment Terms:
L/C,T/T
Brand:
LYTTE
Products Model:
D Series
Share:
  • Products Details
  • Company Profile

Quick Details

  • Brand Name: LYTTE

    Model Number: D Series

    Place of Origin: Shandong, China (Mainland)

  • Condition: New

    Application: Cold Room Storage, Refrigeration Parts

    Power Source: Electric

  • Process: Plate

    Voltage: 110V,220V,380V, 380V, 220V,110V

    Power(W): 1.4-122KW

  • Dimension(L*W*H): According to the models

    Weight: According to the models

    Certification: CE, ISO, CRAA

  • Warranty: 1 Year

    After-sales Service Provided: Engineers available to service machinery overseas

    Temperature: L:-5℃~5℃ | D:-15℃~-20℃ | J:Below -25℃

  • Cooling Capacity: 2.2KW-120KW

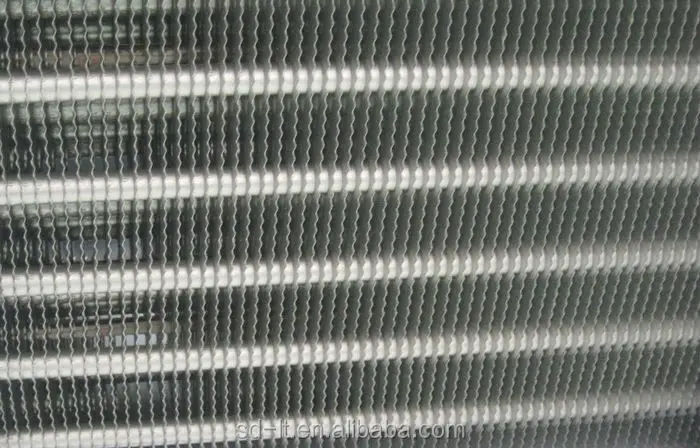

    Coil: Copper Tube with Aluminium Fin

    Fan Diameter: 310-630mm

  • Fan Quantity: 1-4

    Deforsting Heater: Yes

    Refrigerant: R22, R134a, R410a, R407c etc

Packaging & Delivery

  • Packaging Details: wooden cases or cartons
  • Delivery Detail: 15days

Specifications

AC Evaporator Coil
For Cold Storage Room Cooling
CE Qualified,
Air Cooled Evaporator
1-50HP Capacit





Product Description

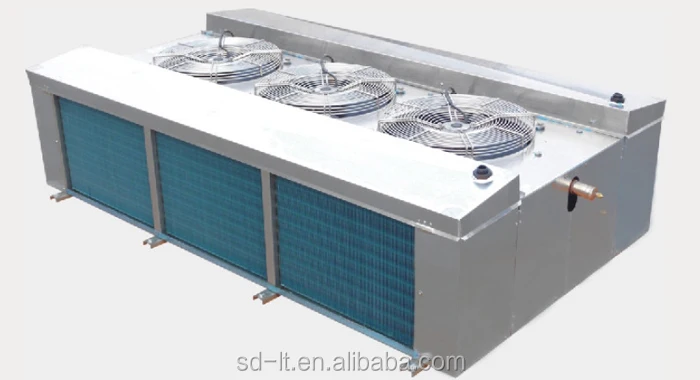

High Efficiency AC Evaporator Coil for Refrigeration Parts







Features of Ac Evaporator Coil

 1.Unit cabinet of steel plate with plastic spray, corrosion proof, and pleasant looking;
 2.Mechanically expanded pipes with AL fins with good heat transfer performance;
 3..Inside are evenly arranged with deforsting heaters;
 4.The bottom has double water receiver,effective for anti-freezing;
 5.Long distance air throw is optional.



Model Specification of Ac Evaporator Coil
D L 19/45 3 A


  D--Products Series Code

  L--Temperature(L:-5°C~5°C;D:-15°C~-20°C;J:Below -25°C) 19--Nominal heat exchange
45--Fan Diameter

  3--Fan Quantity
 A--A:380V/3P/50HZ;B:220V/1P/50HZ;C:220V/3P/60HZ;D:220V/1P/60HZ;

      E:110V/1P/60HZ(D,E    Fan Diameter≤500mm)



Technical Data of Ac Evaporator  Coil

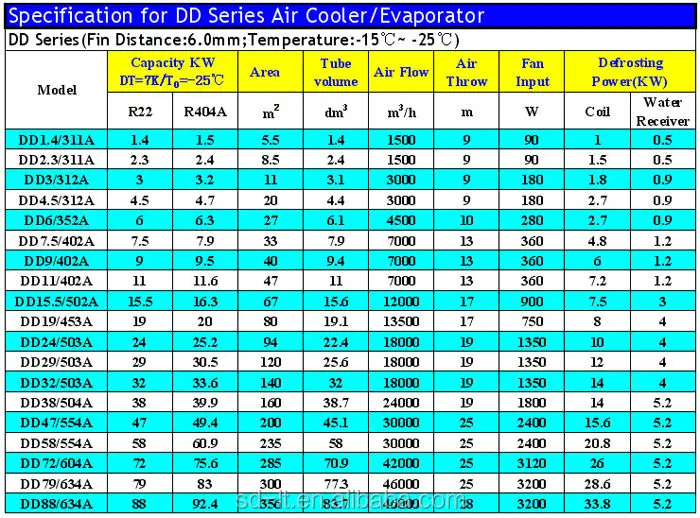

DD Series Ac Evaporator Coil

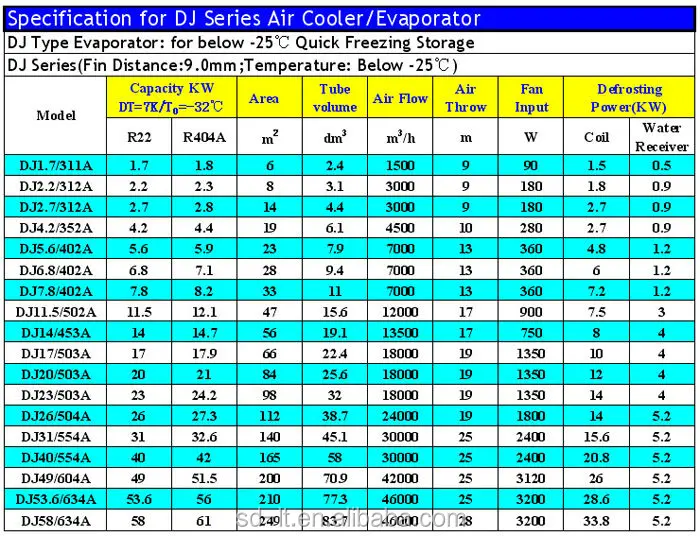

DJ Series Ac Evaporator Coil



DL Series Ac Evaporator Coil

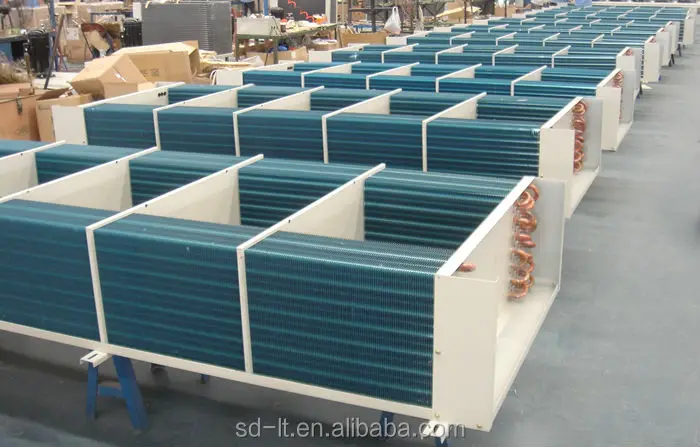

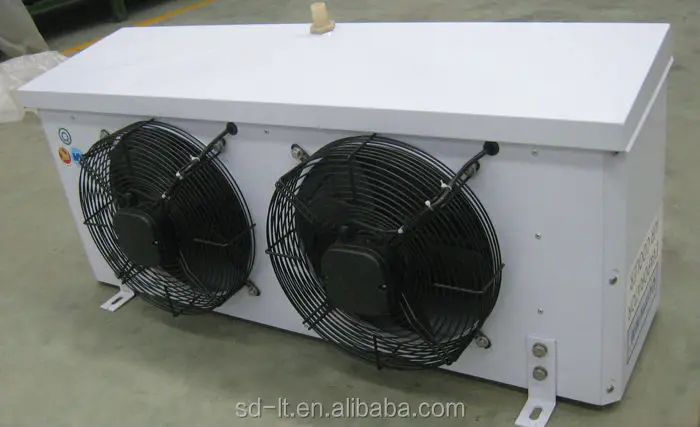

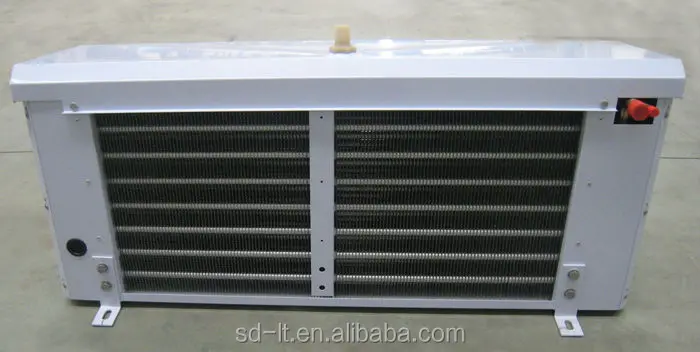

Products of Ac Evaporator Coil
