Certificated 15KW Air Source Heat Pump Integral Water Heater, DC Inverter Compressor,several language,TUV CE Rohs EN14511

FOB Price:

Open price

Min.Order Quantity:

1 Set/Sets

Supply Ability:

500 Set/Sets per Month

Port:

SHUNDE

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

L/C,T/T

Brand:

OEM, OEM

Products Model:

AWA-SS-15(DC)1

Products Details
Company Profile

Quick Details

Brand Name: OEM, OEM

Model Number: AWA-SS-15(DC)1

Place of Origin: Guangdong, China (Mainland)
Type: DC Inverter Air Source Heat Pump
Installation: Freestanding
Storage / Tankless: Storage
Housing Material: Anti-corrosive material
Use: Floor heating, Radiator ,Bathroom
Certification: CE, RoHS, CE, ROHS, EN14511
Products type: Air Source Heat Pump with DC Inverter
Funtion: room heating, room cooling, air heating, air cooling, hot water
Heating capacity: 15KW
Power supply: 380V/3PH/50HZ or 220V/1PH/50HZ
Green refrigerant: R401A
Heat exchanger: #316 Plate Heat Exchanger

Packaging & Delivery

Packaging Details: 1. Whole set unit is packed nicely in a PE bag. Packing by Anti-collision protection + 5 Layer carton + wooded Case (For LCL only). 2. Spare parts & instruction sealed in the pack. 3. Customized packing is available. 4. We are always working hard on the most reliable packing in order to help you get the Perfect products.
Delivery Detail: 7~35 days after receiving 35% deposit or full payment(if sample)

Specifications

Air source heat pump with DC inverter is a high tech heat pump which more and more customers are looking for, it is the future of heat pump industry because the frequency of compressor and speed of fan are automatically adjustable according to the heat need of house; the heating capacity is more flexible than ON/OFF type heat pump, and the quality will be much better at the same time. Our inverter air source heat pump as in following feature:

High COP due to adopt R410a and high efficient inverter compressor of Japanese famous brand name.

15%~30% higher efficiency than ON/OFF type heat pump; Make full use of waste heat from the PCB, more energy-saving compare normal inverter heat pump (more than 10% energy –saving )

Reliable Inverter controller imported from Japan,
LCD language display can be several languages.
Automatic control of defrosting-cycle program base on years experience in Europe especially in North Europe;
Pretty and compact in appearance.
Galvanizes metal after powder paint; super anti-corrosive capability.
Excellent inside insulation.
Enlarger evaporator and double fan speeds ensure good –defrosting, high COP and low sound level.
Easy to install or maintain.

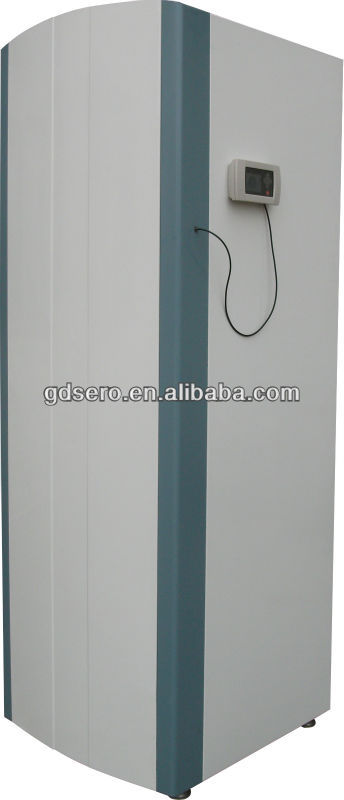

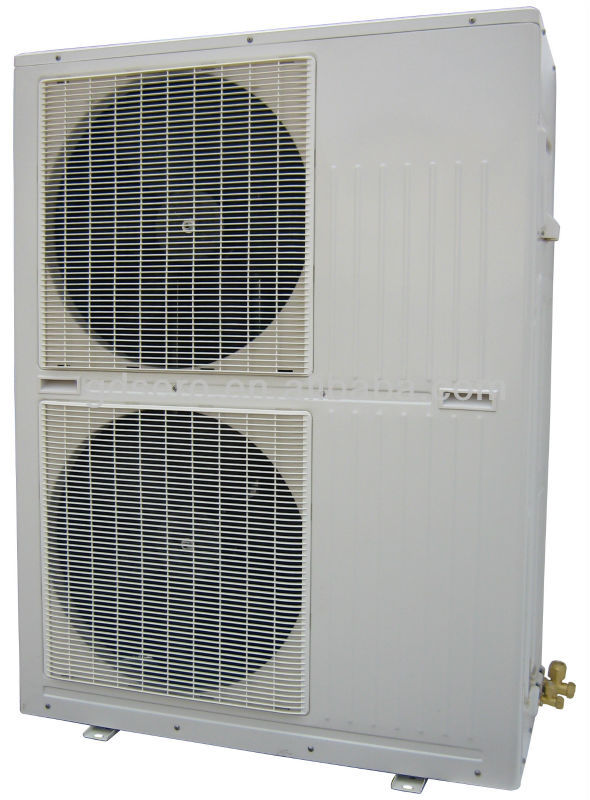

Indoor Unit: Outdoor Unit:

Air Source Heat Pump with DC Inverter (AWA series)
Model		AWA-SS-15(DC)1
Performance at	Test condition	A7/W35	A2/W35	A2/W50	A-10/W35
Heating Capacity	KW	15.4	12.6	10.7	9.4
Power	KW	3.7	3.6	4.8	4
Cop	Efficiency	4.3	3.7	2.4	2.5
Supply Power	V/Ph/Hz	230/1/50 or 400/3/50
Auxiliary Heater	KW	3/6
Compressor	Type	Scroll
Heat Exchanger	Type	Fin/PBHE
Water Tank	Liter	200L
Flow Temp.	°C	65
Dimensions HWD(cm)	indoor unit	1986067
	outdoor unit	10747130
Weight (KG)	indoor unit	235
	outdoor unit	110
Sound level dB/(A)	indoor unit	48
	outdoor unit	53
Testing standard: EN 14511 Sound level: ISO 9614 & Eurovent 8/1
